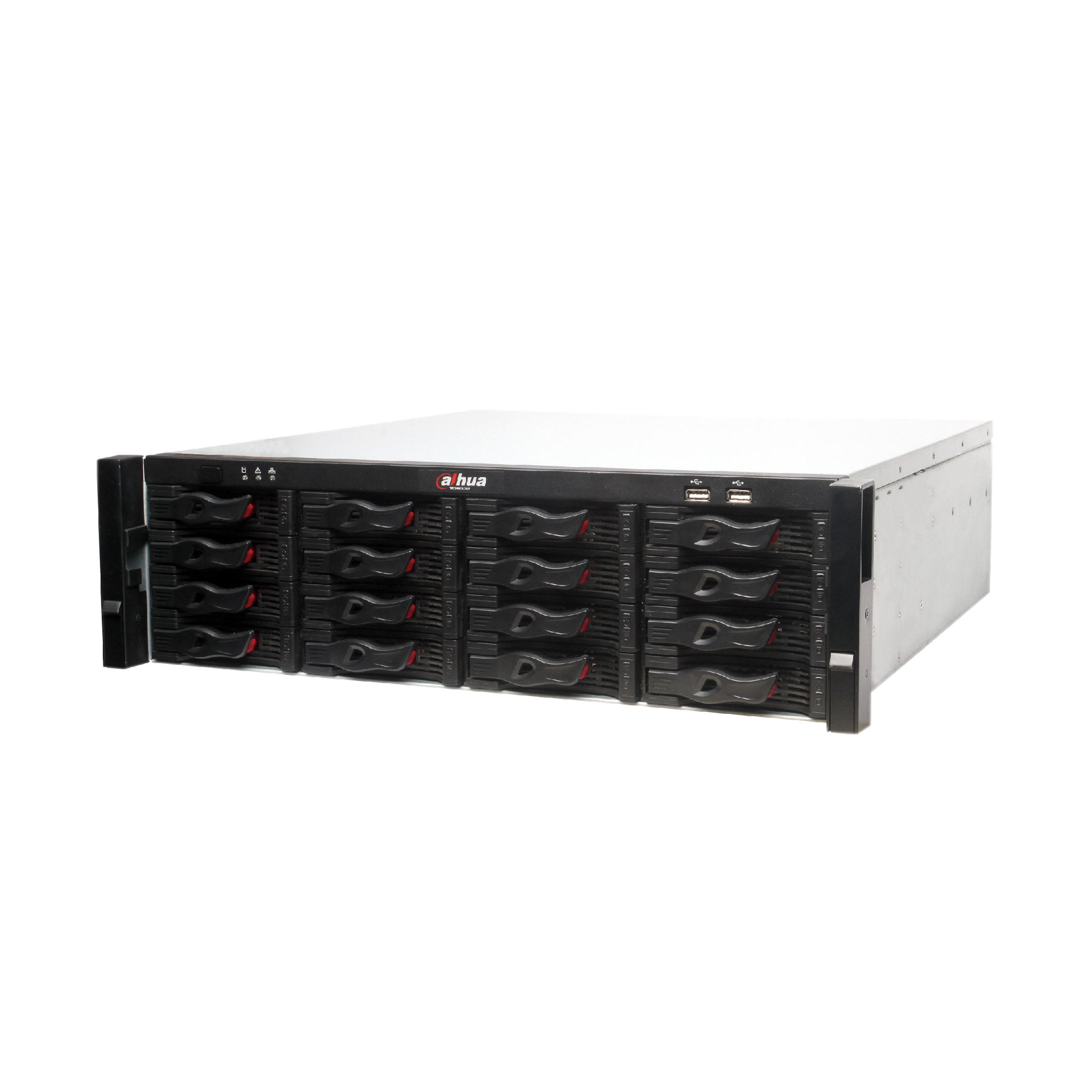

64 Ch 3U 16HDDs Ultra series NVR / NVR616-64-4KS2 DAHUA
> New 4.0 user interface
> 16-channel decoding @1080p (30 fps); self-adaptive decoding capability
> Access, storage or forwarding at 384 Mbps
> Simultaneous video output for VGA and HDMI1; 4K heterogeneous output for the 2 HDMI ports
> Multiple data mode such as Raid0, Raid1, Raid5, Raid6, and Raid10
> Remote configuration and management of IPCs, such as setting pa rameters, acquiring information and upgrading IPCs of the same model in batches
> AI-by-camera functions such as perimeter protection, face detection and recognition, SMD Plus, video metadata, ANPR and 3D behavior analysis
> N+M cluster. When the host fails, the standbydevice will continue to record; once the host recovers,video recorded on the standby device will be transmitted back
Channels 64 | Drives/bays 16 | Rack 3U | CPU Intel Quad-core Processor | SATA | SATA 3.0 | Integrated LAN Gigabit | 1x15pin D-sub | 2xHDMI | 1xRS232 | 2xUSB 2.0 | 2xUSB 3.0 | 1xeSATA | 4xRJ45 | 1xRS-485 | 1xMiniSAS, ext | 16xAlarm In | 8xAlarm Out | Power supply requirements AC100V ~ 240V, 50 ~ 60 Hz | Power consumption 51 Watts | Dim. 485 x 512.9 x 133.2mm | Temp. range -10°C ~ +55°C
