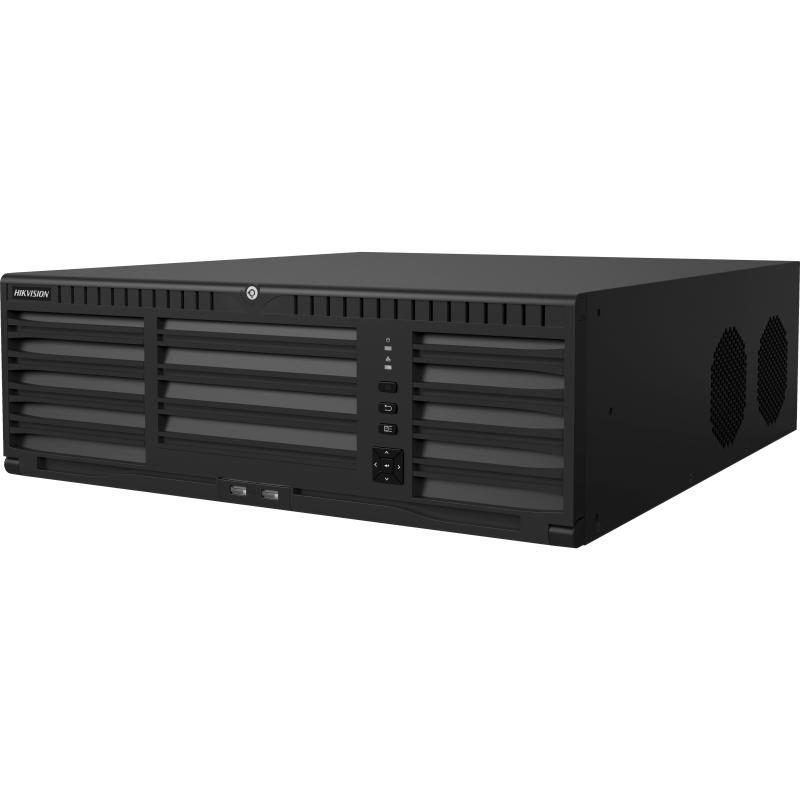

Hikvision 128-ch 3U 4K Super NVR / DS-96128NI-I16/H
128-ch 3U 4K Super NVR
Up to 128 channel IP cameras can be connected
Up to 768 Mbps high incoming bandwidth ensures IP cameras can be connected
2 HDMI interfaces (different source), 1 VGA interfaces, and 1 decoding board
16 HDD can be used for continuous video recording
Redundant power supply to improve system stability
Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
Advanced streaming technology enables smooth live view in poor network conditions
Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
128-ch 3U 4K Super NVR
Up to 128 channel IP cameras can be connected
Up to 768 Mbps high incoming bandwidth ensures IP cameras can be connected
2 HDMI interfaces (different source), 1 VGA interfaces, and 1 decoding board
16 HDD can be used for continuous video recording
Redundant power supply to improve system stability
Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
Advanced streaming technology enables smooth live view in poor network conditions
Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
128-ch 3U 4K Super NVR
Up to 128 channel IP cameras can be connected
Up to 768 Mbps high incoming bandwidth ensures IP cameras can be connected
2 HDMI interfaces (different source), 1 VGA interfaces, and 1 decoding board
16 HDD can be used for continuous video recording
Redundant power supply to improve system stability
Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
Advanced streaming technology enables smooth live view in poor network conditions
Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
Video and Audio
IP Video Input
128-ch
Incoming Bandwidth
768 Mbps
Outgoing Bandwidth (RAID mode)
512 Mbps
TLS outgoing bandwidth
128 Mbps, or 64 Mbps (when RAID is enabled)
HDMI Output
Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
VGA Output
1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
LCD Output
Optional: One 7 inch LCD
Outgoing Bandwidth
512 Mbps
Audio Output
1-ch. RCA (2.0 Vp-p, 1 KΩ)
Incoming Bandwidth (RAID Mode)
768 Mbps
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Decoding
Decoding Format
32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled.
Synchronous playback
Up to 16 channels
Decoding Capability
3-ch@12 MP (30fps), 5-ch@8 MP (30fps), 6-ch@6 MP (30fps), 10-ch@4 MP (30fps), 20-ch@1080p (30 fps)
Recording Resolution
1-ch@32 MP (8160 × 3616, 30 fps)/5-ch@8 MP(30 fps)/10-ch@4 MP(30 fps)/20-ch@1080p(30 fps)/40-ch@720p(30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
Network
Network Protocol
IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Camera Access Protocol
HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO
Network Interface
4, RJ45 10M/100M/1000M self-adaptive Ethernet interface
RAID
RAID Type
RAID0, RAID1, RAID5, RAID 6, and RAID10
Auxiliary Interface
Serial Interface
RS-232; RS-485; Keyboard
Capacity
Up to 10 TB for each HDD
USB Interface
Front Panel: 1 × USB 2.0; Rear Panel: 2 × USB 3.0
Extension Board
One extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs.
Decoding Board
1
General
Power Supply
100 to 240 VAC, 50 to 60Hz, 5 A
Consumption
≤ 140W
Working Temperature
0 °C to + 50 °C (32 °F to 122 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
442 × 494 × 146 mm (17.4 × 19.4 × 5.7 inch)
Weight
≤ 16 kg (35.3 lb)
Video Wall Management
HDMI Output/Input
6/1
HDMI Output Resolution
4K(3840x2160)/60Hz, 4K (3840x2160)/30Hz, 2K (2560x1440)/60Hz, 1080p (1920x1080)/60Hz, SXGA (1280x1024)/60Hz, 720p (1280x720)/60Hz, XGA (1024x768)/60Hz
HDMI Input Resolution
1080p (1920x1080), SXGA (1280x1024), 720p 1280x720), XGA (1024x768)
Decoding Capacity
48-ch@1080p
Decoding Resolution
12 MP/8 MP/7 MP/6 MP/5 MP/3 MP/1080p/UXGA/720p/VGA/4CIG/DCIF/2CIF/CIF/QCIF
Collage
Supported
Auto-Switch
Supported
Open Window
Supported
Layer Overlay
Supported
Window Roaming
Supported
Display Local Signal Source on Video Wall
Supported
