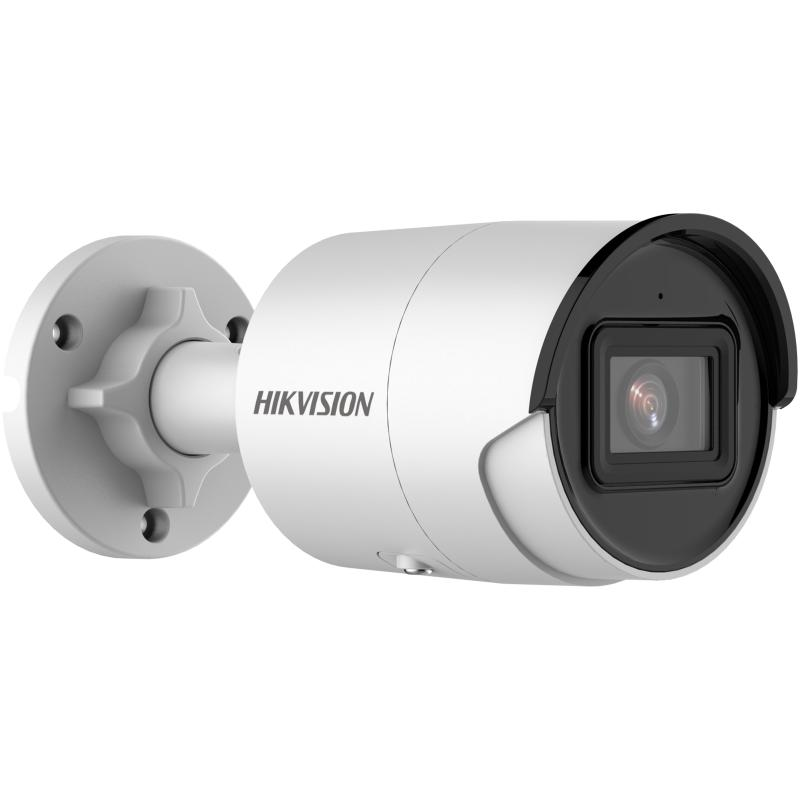

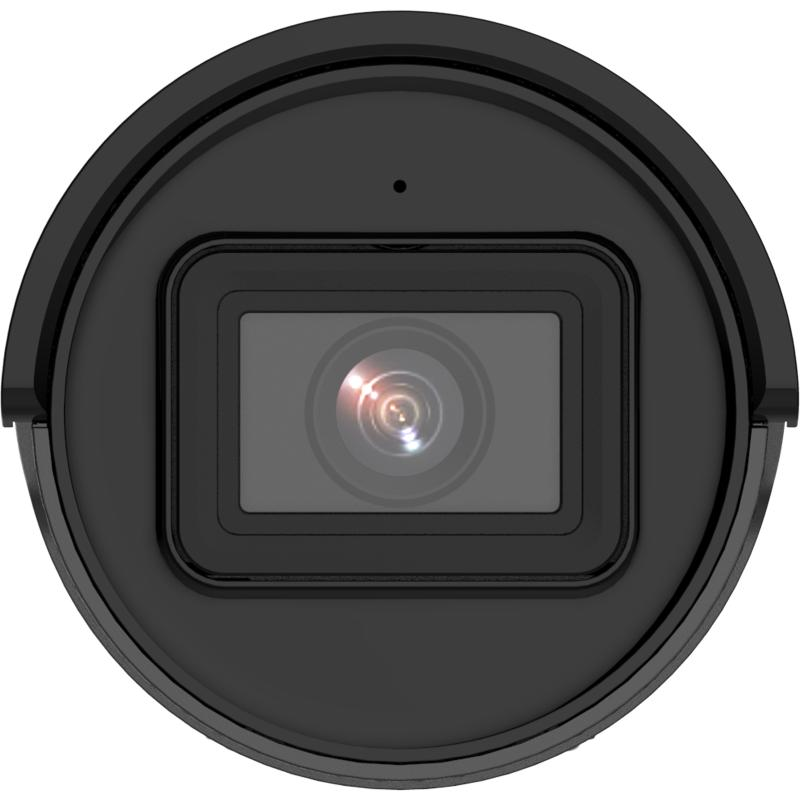

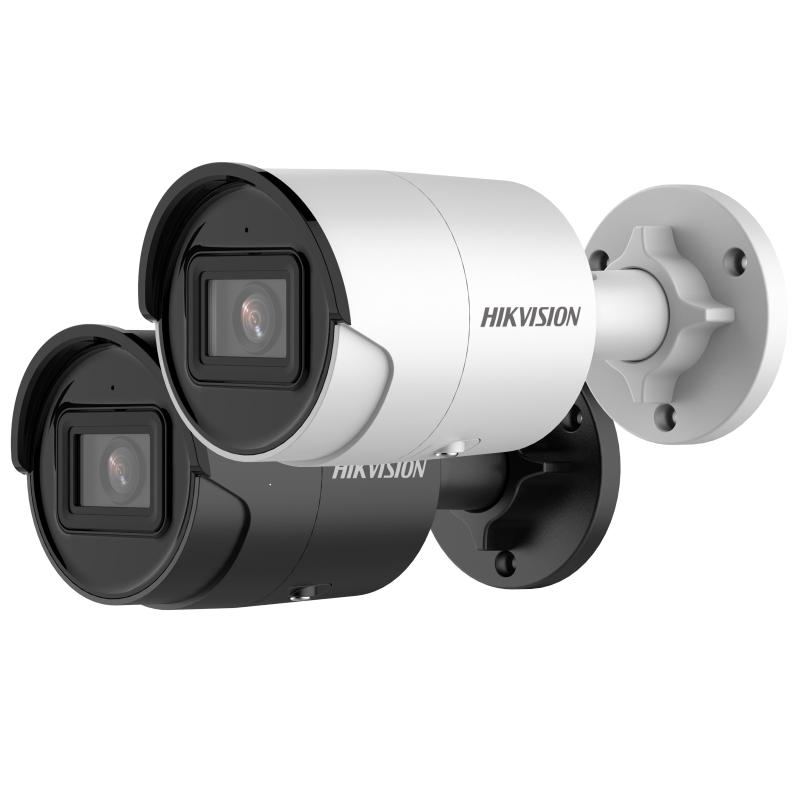

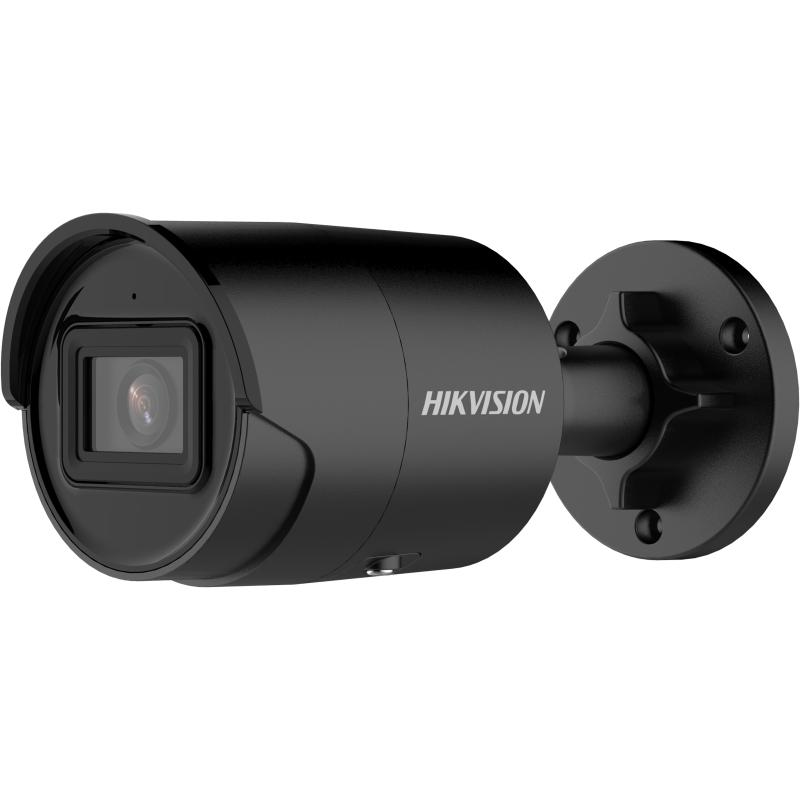

Hikvision 4MP AcuSense Fixed Bullet IP Camera / DS-2CD2043G2-I
4 MP AcuSense Fixed Bullet Network Camera
High quality imaging with 4 MP resolution
Clear imaging against strong backlight due to 120 dB WDR technology
Efficient H.265+ compression technology
-U: Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Focus on human and vehicle targets classification based on deep learning
4 MP AcuSense Fixed Bullet Network Camera
High quality imaging with 4 MP resolution
Clear imaging against strong backlight due to 120 dB WDR technology
Efficient H.265+ compression technology
-U: Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Focus on human and vehicle targets classification based on deep learning
4 MP AcuSense Fixed Bullet Network Camera
High quality imaging with 4 MP resolution
Clear imaging against strong backlight due to 120 dB WDR technology
Efficient H.265+ compression technology
-U: Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Focus on human and vehicle targets classification based on deep learning
Camera
Image Sensor
1/3″ Progressive Scan CMOS
Max. Resolution
2688 × 1520
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100° 6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61°
Lens Type
Fixed focal lens, 2.8, 4, and 6 mm optional
Lens Mount
M12
Aperture
F1.6
Iris Type
Fixed
DORI
DORI
2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m 6 mm: D: 120 m, O: 47,m, R: 24,m, I: 12 m
Illuminator
Supplement Light Range
Up to 40 m
Supplement Light Type
IR
IR Wavelength
850 nm
Smart Supplement Light
Yes
Video
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR/VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
1 fixed region for main stream and sub-stream
Audio
Audio Compression
-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/16-64 Kbps(AAC-LC)
Audio Sampling Rate
-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
-U: Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch
Yes
Image Settings
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
120 dB
Image Enhancement
BLC, HLC, 3D DNR
SNR
≥ 52 dB
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD card, up to 512 GB
Built-in Microphone
-U: Yes
Reset Key
Yes
Event
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event
Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)) Face detection
Linkage
Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture
General
Power
12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.13 A, max. 7 W
Dimension
Ø70 × 161.7 mm (Ø2.76″ × 6.37″)
Package Dimension
216 mm × 121 mm × 118 mm (8.6" × 4.8" × 4.7")
Weight
Approx. 490 g (1.1 lb.)
With Package Weight
Approx. 724 g (1.6 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function
Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Language
33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
