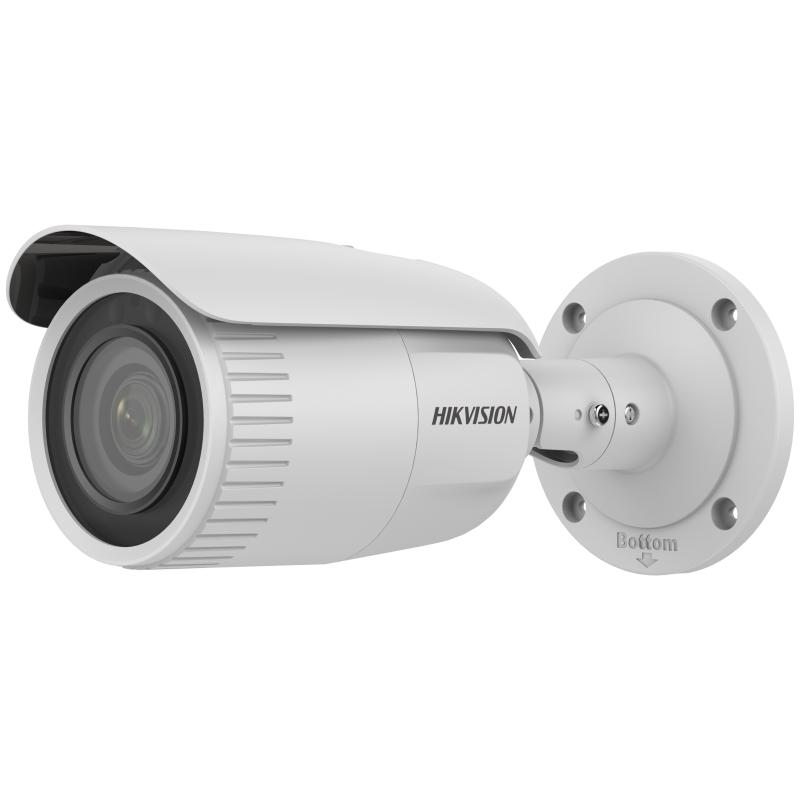

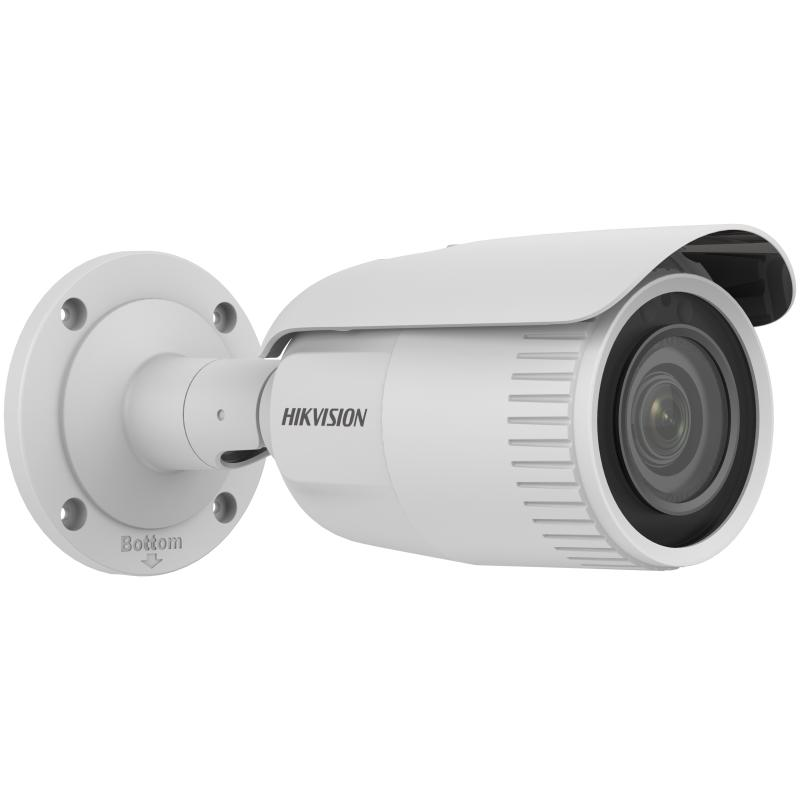

Hikvision 4MP MD 2.0 Varifocal Bullet IP Camera / DS-2CD1643G2-IZ
4 MP MD 2.0 Varifocal Bullet Network Camera
High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Up to 256 GB memory card slot for storage
Water and dust resistant (IP67)
EXIR 2.0: advanced infrared technology with long IR range
Clear imaging even with strong back lighting due to 120 dB WDR technology
Efficient H.265+ compression technology
4 MP MD 2.0 Varifocal Bullet Network Camera
High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Up to 256 GB memory card slot for storage
Water and dust resistant (IP67)
EXIR 2.0: advanced infrared technology with long IR range
Clear imaging even with strong back lighting due to 120 dB WDR technology
Efficient H.265+ compression technology
4 MP MD 2.0 Varifocal Bullet Network Camera
High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Up to 256 GB memory card slot for storage
Water and dust resistant (IP67)
EXIR 2.0: advanced infrared technology with long IR range
Clear imaging even with strong back lighting due to 120 dB WDR technology
Efficient H.265+ compression technology
Camera
Image Sensor
1/3" Progressive Scan CMOS
Max. Resolution
2560 × 1440
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type
Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV
2.8 to 12 mm, horizontal FOV 95.9° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.7° to 33.5°
Lens Mount
Ø14
Iris Type
Fixed
Aperture
F1.6
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 50 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Region of Interest (ROI)
1 fixed region(s) for main stream
Audio
Audio Compression
-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate
-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
-S: 8 kHz/16 kHz
Environment Noise Filtering
-S: Yes
Network
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
User/Host
Up to 32 users 3 user levels: administrator, operator, and user
Client
iVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch
Day,Night,Auto,Schedule
Wide Dynamic Range (WDR)
120 dB
Image Enhancement
BLC,HLC,3D DNR
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Audio
-S: 1 input(s) (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, -S: 1 output(s) (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
-S: 1 input(s), 1 output(s) (max. 12 VDC, 30 mA)
Reset Key
Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage
Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output (-S)
General
Power
12 VDC ± 25%, 0.9 A, max. 11 W,Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
Dimension
Ø105 mm × 244.4 mm (Ø4.1" × 9.6")
Package Dimension
315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
Weight
Approx. 745 g (1.6 lb.)
With Package Weight
Approx. 1124 g (2.5 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Heartbeat, anti-banding, mirror, password protection, privacy mask, watermark
